Introduction to Communication System:
 |
| Introduction to Communication System |
Communication systems are used for a wide variety of applications, including broadcasting, telecommunication, navigation, and control systems. Examples of communication systems include telephones, radios, television broadcasts, satellite communication systems, and computer networks.
Effective communication systems rely on a variety of technologies and principles, including modulation techniques, signal processing, coding theory, error control coding, multiplexing, and networking protocols. The design and implementation of communication systems require expertise in various fields, including electrical engineering, computer science, and telecommunications.

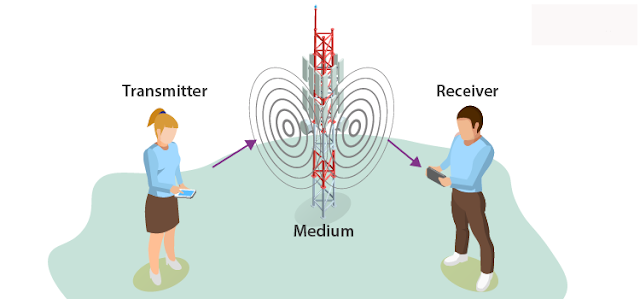

Communication System Overview.
A communication system is a complex network of devices and technologies that enable the exchange of information or signals between two or more parties. The system typically consists of four basic components:1. Transmitter: The transmitter is responsible for converting the message into a signal that can be transmitted over a communication channel. This can involve encoding the message using various modulation techniques, such as amplitude modulation (AM) or frequency modulation (FM), and amplifying the signal to a suitable power level for transmission.
2. Communication Channel: The communication channel is the medium over which the signal travels, such as a wire, fiber-optic cable, or wireless frequency. The channel introduces noise, attenuation, distortion, and interference, which can affect the quality of the signal.
3. Receiver: The receiver is responsible for capturing the signal from the communication channel and decoding it back into the original message. This involves demodulating the signal to extract the information, filtering out noise and interference, and amplifying the signal to a suitable level for processing.
4. Feedback: The feedback mechanism is used to send information back to the transmitter to adjust the signal based on the quality of the received signal. This can involve techniques such as automatic gain control (AGC) or adaptive equalization.
Communication systems can be classified based on various criteria, such as the type of communication channel, the mode of transmission, the type of modulation technique, and the number of users supported. Examples of communication systems include telephony, radio and television broadcasting, satellite communication systems, computer networks, and wireless communication systems.
Effective communication system design requires careful consideration of various factors, including the bandwidth of the communication channel, the available power, the signal-to-noise ratio, and the complexity of the modulation and demodulation techniques. The choice of communication system also depends on the specific application requirements, such as the range, reliability, and security of the communication.
Primary Resources / elements of Communication systems with block diagram
The primary resources or elements of a communication system can be described using a block diagram, which illustrates the flow of information between the different components. The following is a brief overview of the key resources and their functions:1. Information source: This is the source of the message or information to be transmitted, such as a microphone, camera, or computer.
2. Transducer: The transducer converts the message into a form that can be transmitted, such as electrical or electromagnetic signals.
3. Transmitter: The transmitter processes the signal from the transducer, amplifies it, and modulates it for transmission over the communication channel.
4. Communication channel: The communication channel is the physical medium through which the signal is transmitted, such as a wired or wireless network, a cable, or a fiber-optic link.
5. Receiver: The receiver detects and demodulates the transmitted signal, filters out noise and distortion, and converts it back into a form that can be understood by the user.
6. Destination: This is the intended recipient of the message or information, such as a speaker, display, or computer.
 |
| block diagram of communication system |
In more complex communication systems, additional components may be included, such as amplifiers, filters, multiplexers, and encryption devices. The specific design of a communication system will depend on the intended application, the available resources, and the performance requirements of the system.
Baseband signals:
Baseband signals are signals that have not been modulated to a higher frequency, and they typically occupy a narrow bandwidth around the zero-frequency or DC (Direct Current) component. These signals are also known as low-pass signals because they do not contain any significant frequency components above the baseband frequency range. Baseband signals can be analog or digital in nature, and they are typically used in wired communication systems such as landline telephones and Ethernet networks.
Analog baseband signals can be represented by voltage or current waveforms that vary continuously over time, such as audio signals from a microphone or a speaker. These signals can be amplified, filtered, and processed using analog circuits and devices.
Digital baseband signals, on the other hand, are composed of a sequence of discrete values or symbols that represent binary digits (bits). These signals are typically generated by digital signal processing (DSP) techniques such as pulse-code modulation (PCM) or delta modulation, and they can be transmitted over a communication channel using various modulation schemes such as amplitude-shift keying (ASK), frequency-shift keying (FSK), or phase-shift keying (PSK).
In some communication systems, baseband signals are modulated to higher frequencies to allow for longer-distance transmission and improved signal quality. This process is known as modulation and typically involves multiplying the baseband signal by a carrier signal with a higher frequency. Examples of modulation techniques include amplitude modulation (AM), frequency modulation (FM), and quadrature amplitude modulation (QAM).
Overall, baseband signals are an essential component of modern communication systems and are used in a wide range of applications, from voice communication to digital data transmission.
Limitations of base band transmission:
Limited Range: Baseband signals are typically limited in range and are susceptible to signal attenuation and distortion over long distances. This is because the signal power decreases as it propagates through the transmission medium, and noise and interference can also affect the signal quality.
1. Interference: Baseband signals can be susceptible to interference from other sources, such as electromagnetic interference (EMI) or radio-frequency interference (RFI). This can result in signal distortion and noise that can affect the quality of the signal.
2. Bandwidth Limitations: Baseband signals typically have a limited bandwidth, which restricts the amount of information that can be transmitted. This can be a significant limitation in applications that require high-speed data transmission or multiple simultaneous transmissions.
3. Security: Baseband transmission is generally less secure than modulated signals since the signal can be intercepted easily, leading to privacy and security concerns.
4. Complexity: Baseband transmission requires a more complex system design, which can be challenging to implement and maintain. This complexity is due to the need for analog-to-digital conversion, digital signal processing, and other specialized hardware and software.
In summary, while baseband transmission is a simple and cost-effective method for transmitting signals over short distances, it has several limitations that make it unsuitable for many applications, particularly those that require long-range communication, high data rates, and secure transmission. To overcome these limitations, various modulation techniques have been developed that allow for higher bandwidths, longer ranges, and improved signal quality.
